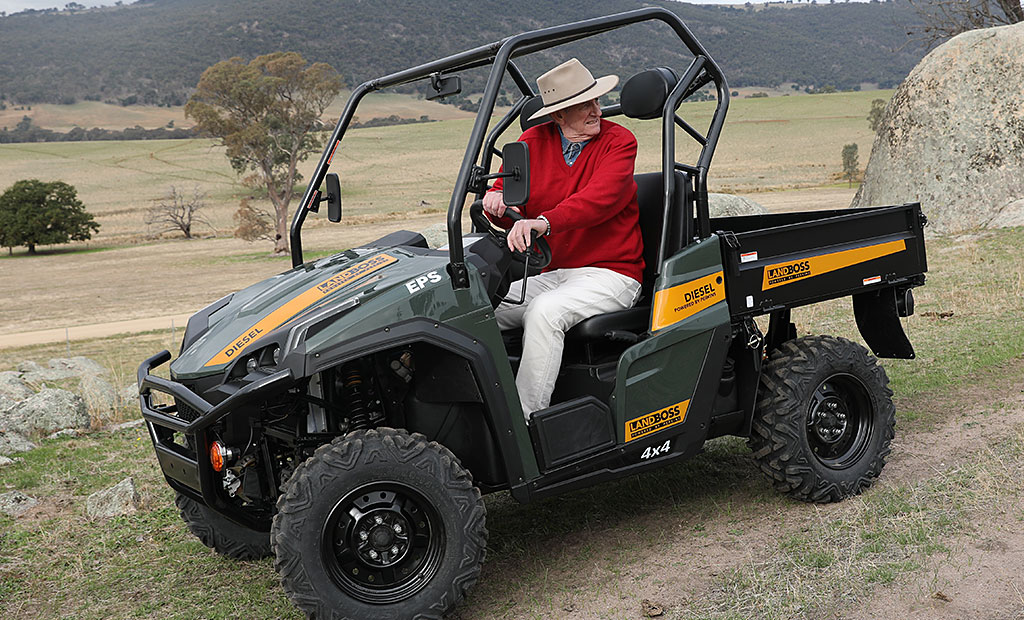

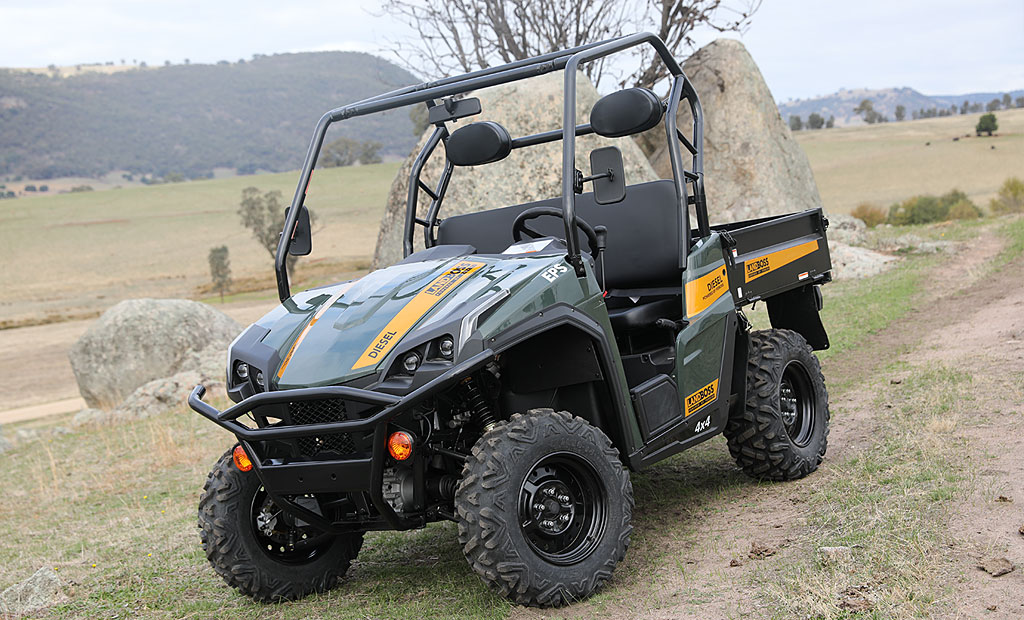

The Landboss 800D is powered by an unbreakable Perkins diesel engine and built for use across any application. Sturdy design, superior handling and agility help make your job safer and get the work done faster. The Landboss 800D is your perfect partner for the land, equipped with all the features and priced at a sharp price point for a diesel UTV.
Landboss, ready to work.
KEY FEATURES
- 20 hp Perkins 3 cylinder diesel engine
- 45Km/h top speed
- Canadian CVTech transmission
- Electronic power steering (EPS)
- Selectable 2WD/4WD with front & rear differential lock, turf mode
- Durable 26 inch 4 Ply tyres on 14 inch black steel wheels
- Independent dual, A- Arm suspension front and rear

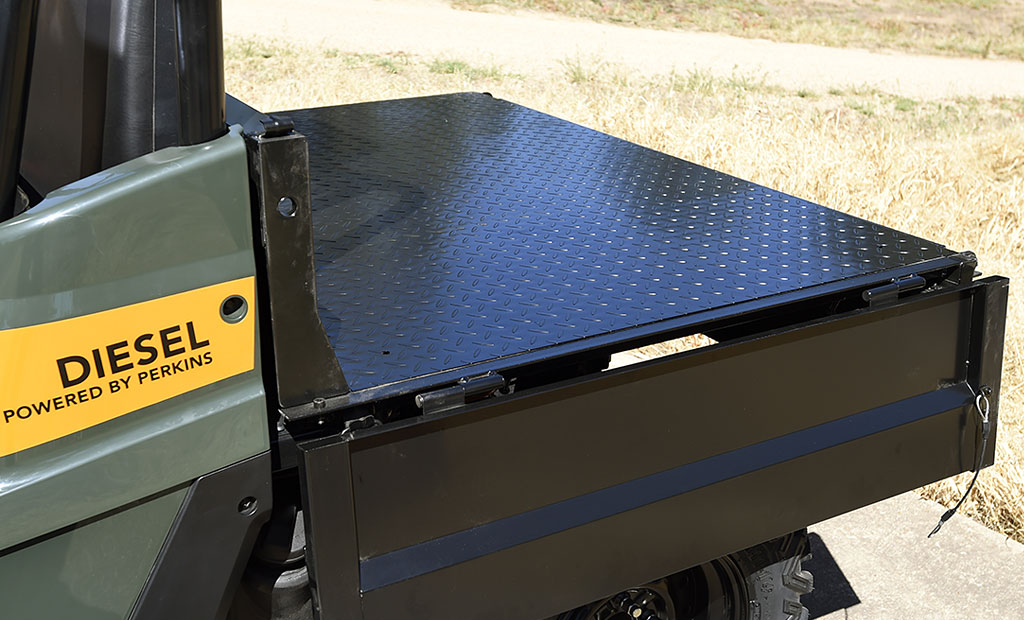

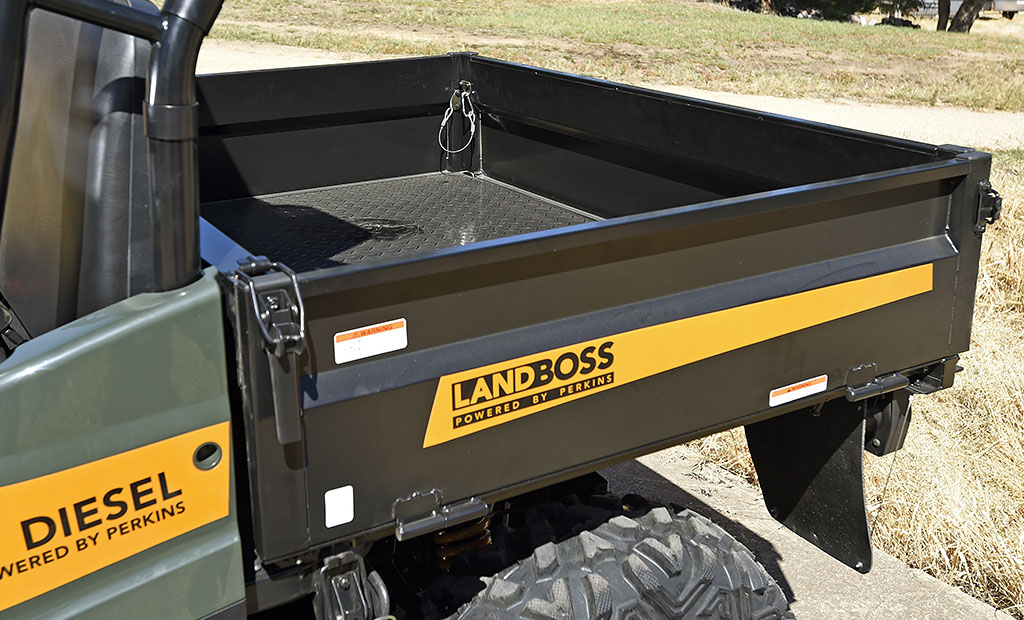

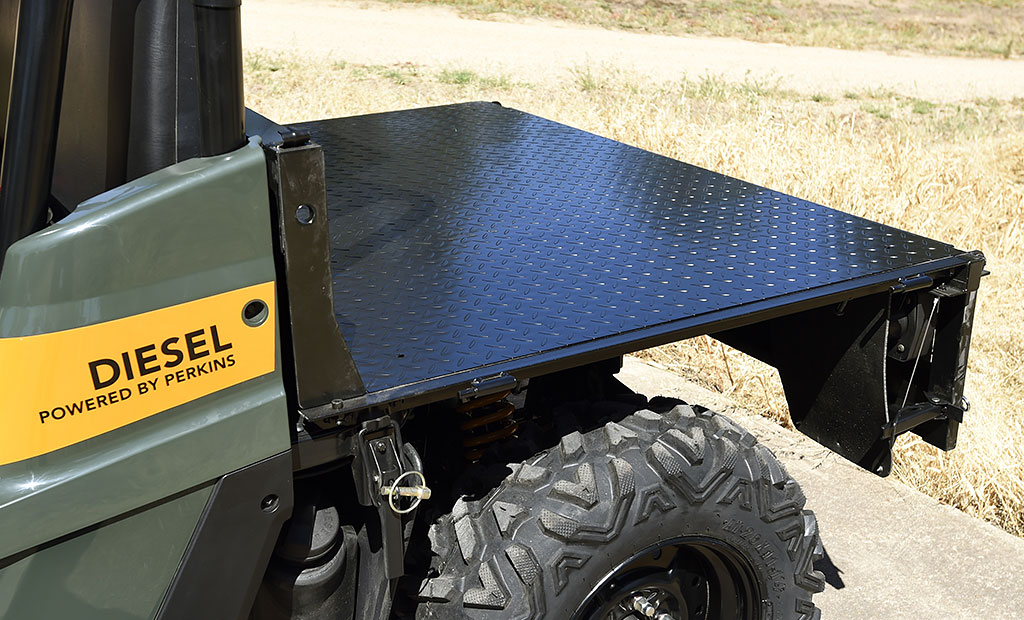

- Steel tip tray with removable drop down sides and a 450kg carry capacity
- Front and rear tow pack to move a hefty 700kg
- Reverse beeper, a 3 seat bench seat with seat belts
- ROPS certified roll frame
- Roof kit now fitted as standard equipment
- Full lights package, horn and mirrors are all standard equipment
- Available in green
- 2 year parts and labour warranty

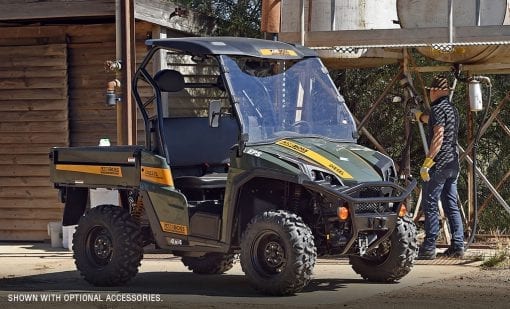

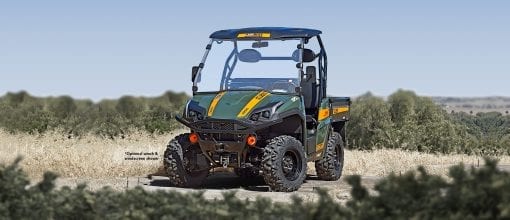

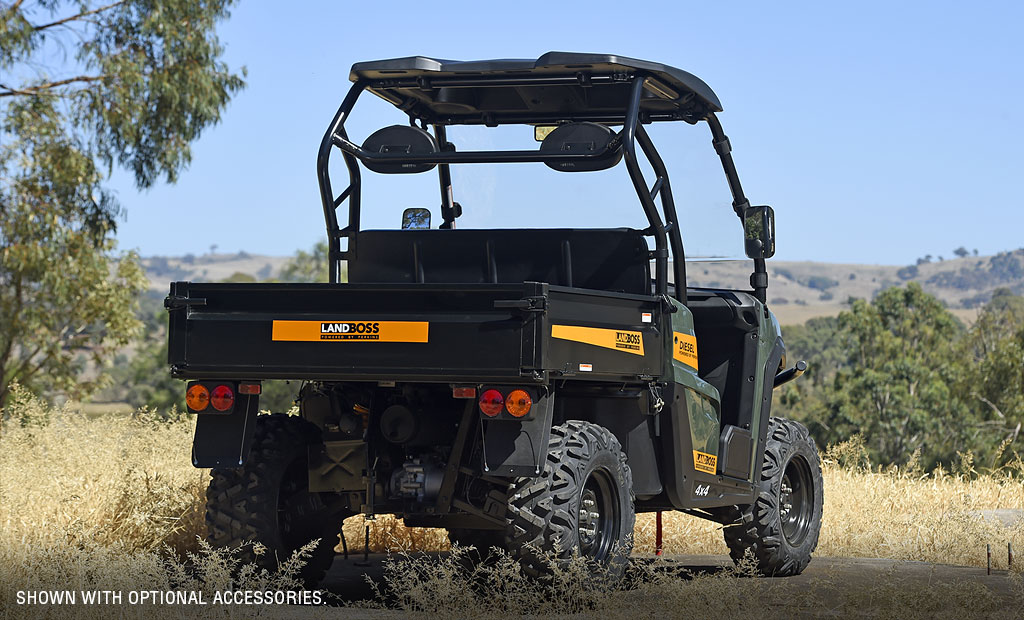

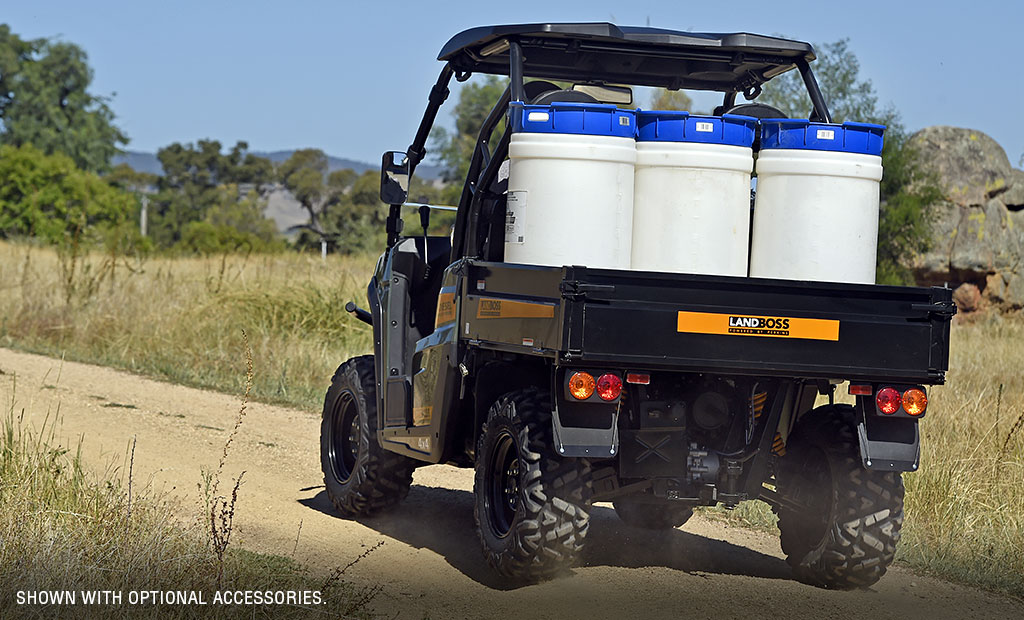

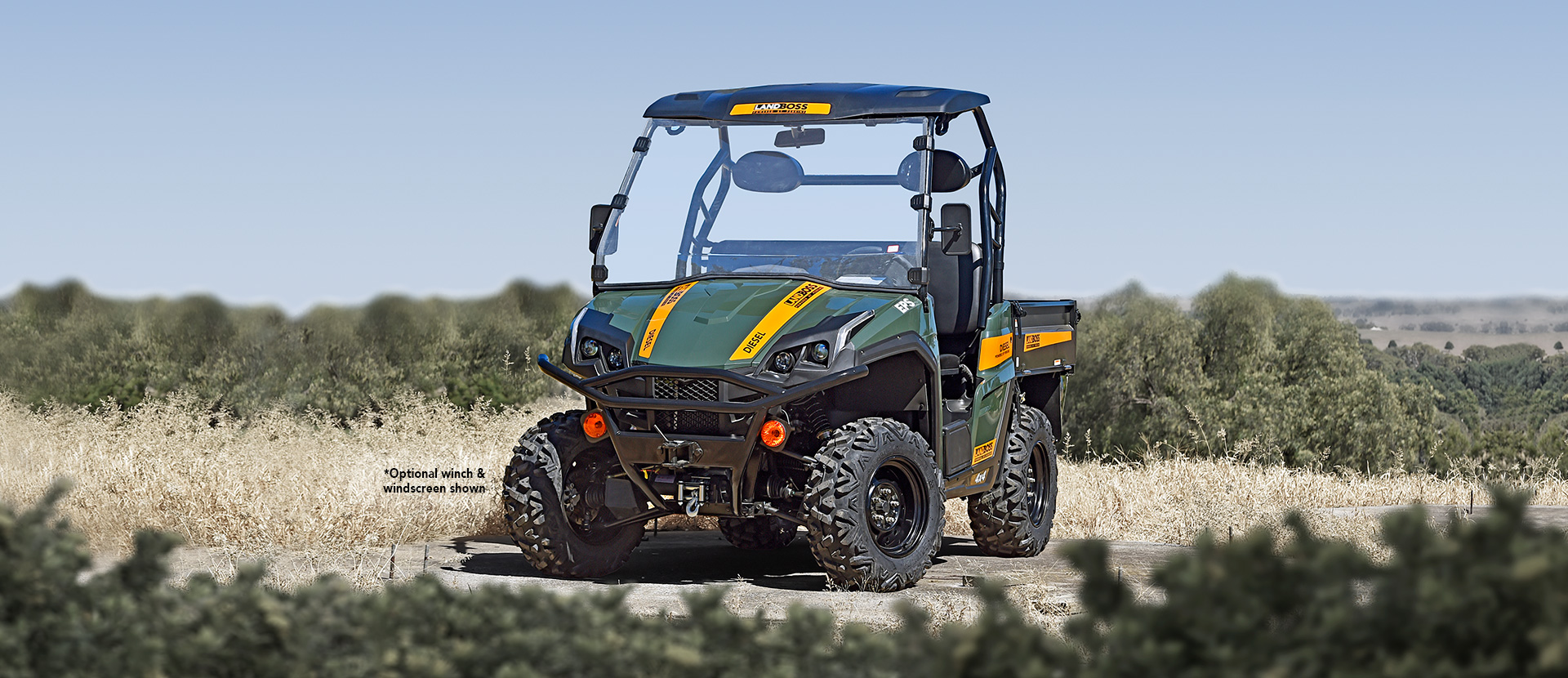

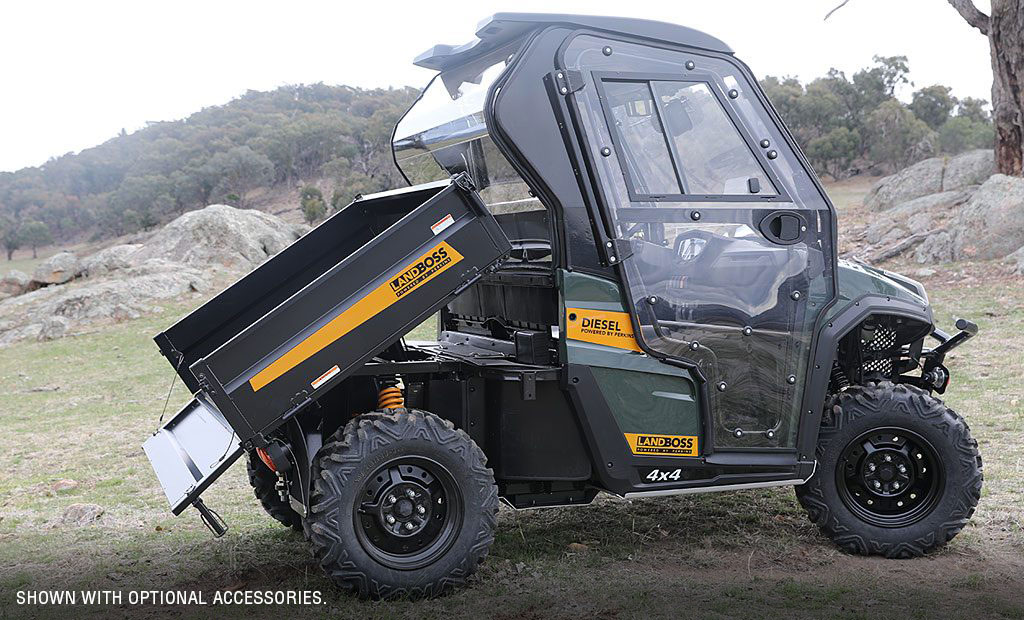

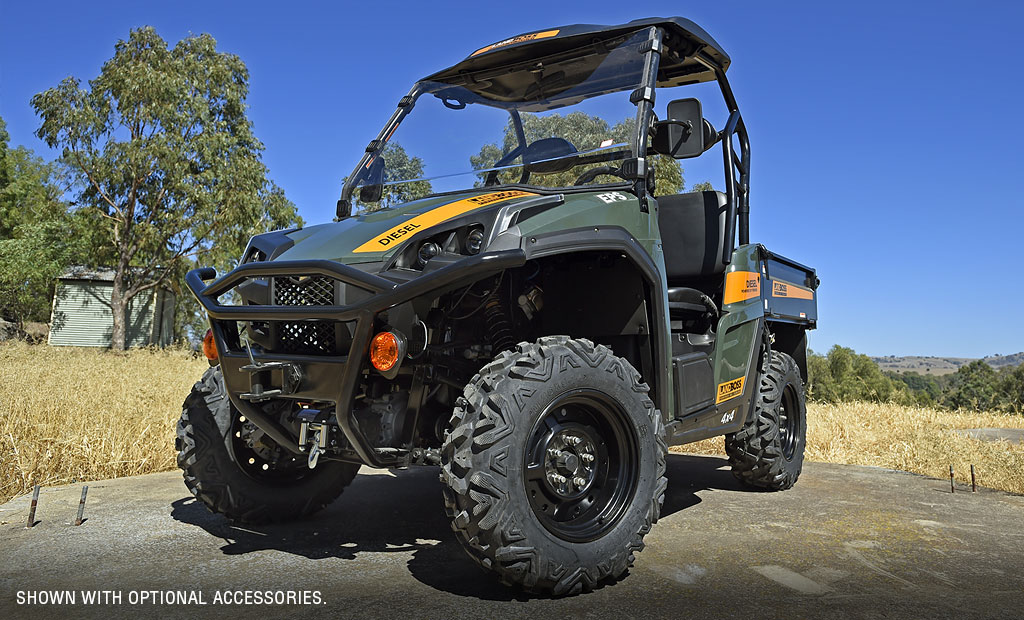

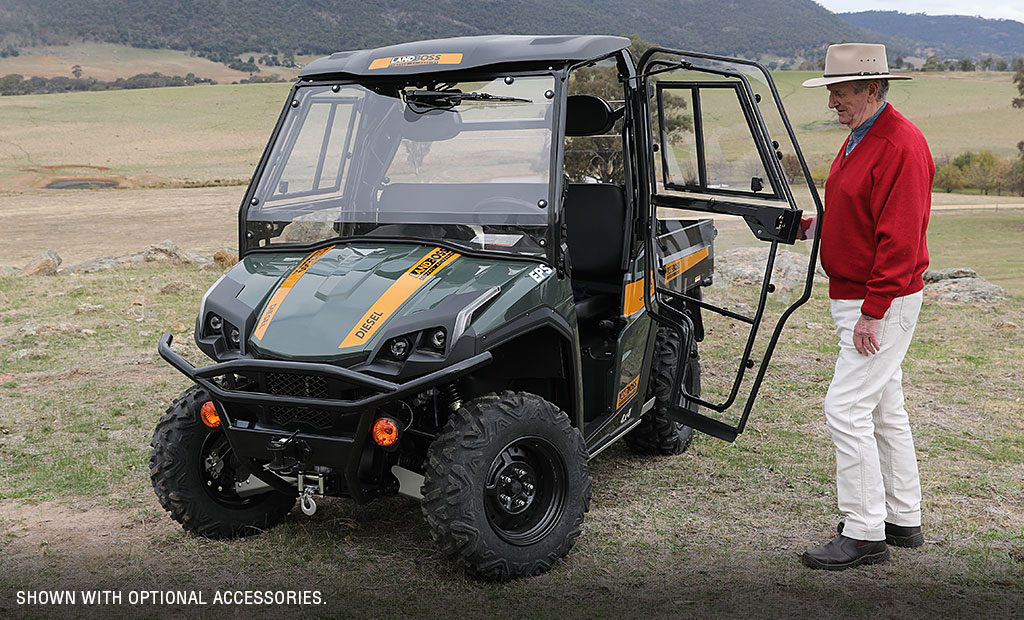

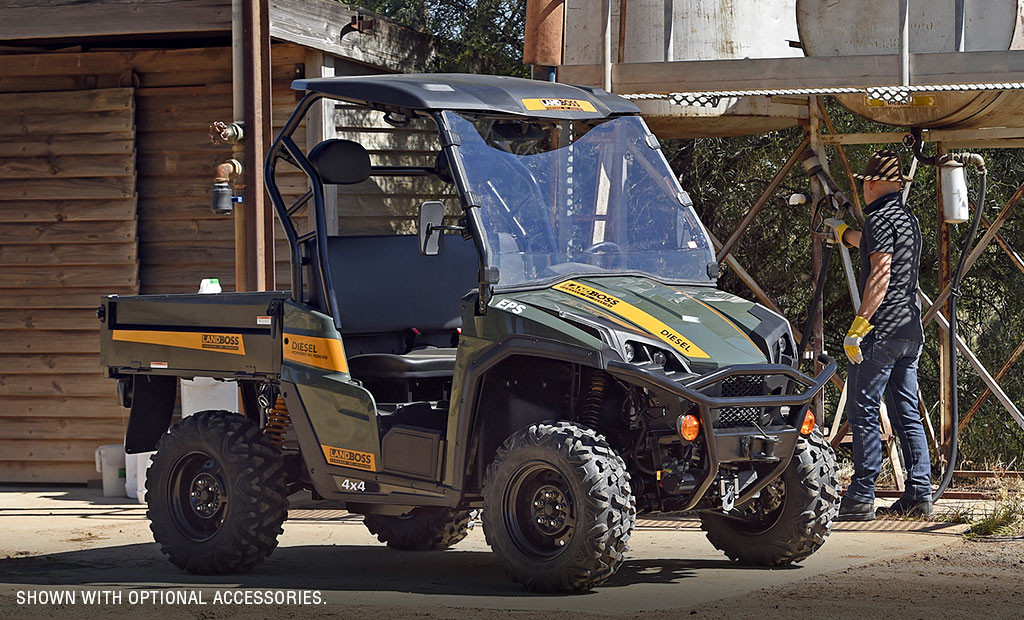

NOTE: model shown with optional winch & windscreen
SPECIFICATIONS
Engine Type 20HP, In Line 3 Cylinder, Water Cooled Perkins Diesel
Engine Model Perkins 403D-07
Cooling Liquid
Bore & Stroke 67mm x 72mm
Compression Ratio 23.5:1
Maximum Torque 44.5NM @ 2200rpm
Starter System Electric
Battery/AMP Hour 12Volt, 45Ah
Lubrication System Forced Feed
Transmission CVTech High / Low / Neutral / Reverse, 2WD / 4WD, Front & Rear Differential Lock
Clutch Constant Variable Transmission (CVT)
Final Drive Shaft Drive
Front Brakes Dual Hydraulic Disc
Rear Brakes Hydraulic Disc
Parking Brake Hand
Steering Adjustable Tilt Steering Wheel & Electronic Power Steering (EPS)
Front Suspension Dual A-Arm Coil Over Shock
Rear Suspension Dual A-Arm Coil Over Shock (IRS)
Tyres (front/rear) 26x9x14 / 26x11x14
Wheels Front 14×9 / Rear 14×11
Wheels Steel 5 Stud
Dimensions (L/W/H) 3018mm / 1520mm / 1905mm
Wheel Base 1,930mm
Distance between Wheels 990mm
Ground Clearance 280mm
Dry Weight 700kg
Fuel Capacity 35 litres
Cargo Box Capacity 450kg
Rear Tray (L/W/H) 1020mm / 1470mm / 400mm
Towing Capacity 700kg
Warranty 2 Years Parts & Labour
